Lithium Iron Disulfide (LiFeS2) Batteries AA FR14505 FR6 1.5V
3000mAh to Replace Energizer L91 Ultimate Lithium Batteries
AA FR14505 FR6 1.5V 3000mAh LiFeS2 Battery Characteristics
1. Electrical Specifications: It has a nominal voltage of 1.5V and
a nominal capacity of around 3000mAh. The maximum continuous
discharge current can reach 2500mA, and the maximum pulse discharge
current is 4000mA (2 sec on / 8 sec off);
2. Battery Chemistry: It is a lithium iron disulfide (Li-FeS₂)
battery, which provides a stable chemical reaction for power
output;

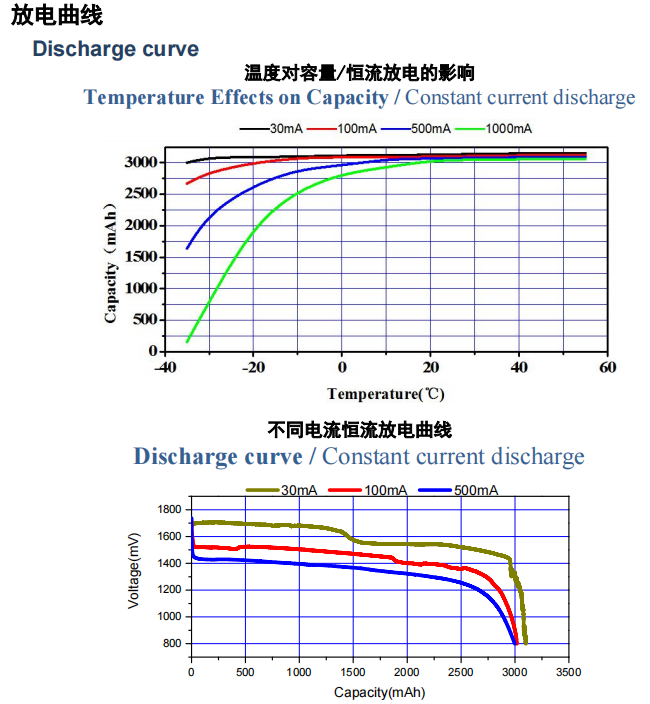

3. Discharge Performance: The battery shows a high and stable
operating voltage platform during discharge, ensuring consistent
power supply to the device;
4. Energy Density: It has a relatively high energy density, which
is 3-10 times greater than that of non-lithium systems, allowing
for longer device operation times;
5. Temperature Range: It can operate within a wide temperature
range of -40℃ to 60℃, demonstrating good performance in both
extremely cold and hot environments;
6. Self-Discharge Rate: The self-discharge rate is low, with less
than 1% per year at room temperature, enabling long-term storage
without significant capacity loss;
7. Longevity: It has a long lifespan, retaining about 90% of its
capacity after 10 years of storage at 20°C;
8. Leak-Proof Design: With an excellent leak-proof design, it
reduces the risk of leakage during use and storage, enhancing
safety and device protection;
9. Safety: It has good safety performance and has passed safety
tests such as UL (MH45237/MH49306), UN38.3, CE, and RoHS;
10. Environmental Protection: It is environmentally friendly,
containing no toxic or harmful substances;
11. Shape and Size: It is in the shape of AA, with dimensions of
approximately 14.5 * 50.5 mm (diameter * height), making it
suitable for use in various common devices.
AA FR14505 FR6 1.5V 3000mAh LiFeS2 Battery Nominal Specifications
AA FR14505 FR6 1.5V 3000mAh LiFeS2 Battery Applications
The FR14505 battery has a wide range of applications, including:
• Consumer Electronics: It is commonly used in portable devices
such as digital cameras, providing stable power for taking photos
and videos. It can also be used in other consumer electronics like
portable audio players, game consoles, and electronic toys.
• Household Appliances: This battery is suitable for powering small
household appliances, for example, it can be used as the power
source for remote controls of televisions, air conditioners, and
other electrical appliances.
• Medical Equipment: In medical instruments such as some portable
medical monitors and small diagnostic equipment, the FR14505
battery can provide reliable power support to ensure the normal
operation of the equipment.
• Security Devices: It is widely used in security systems, like
smoke detectors, burglar alarms, and security cameras, to ensure
that these devices can work continuously and stably.
• Lighting Equipment: The FR14505 battery can be used in some small
lighting devices, such as flashlights, camping lights, and
emergency lights, providing bright light in dark environments.
• Backup Power: It can serve as a backup power source for some
devices that require continuous power supply, such as memory backup
power sources in computers and uninterruptible power supplies for
some small electronic equipment.
• Meters: It is suitable for use in water meters, gas meters, and
electricity meters, providing long-term and stable power supply to
ensure the normal operation and accurate measurement of these
meters.
