3.8V 75mAh Lithium Ion Polymer Battery 321223 Small Lipo Battery
for Electronic Pen
Liithuim Ion Polymer Battery 321223 Description
The 3.8V 75mAh lithium ion polymer battery model 321223 is
specifically designed for electronic pens, providing a reliable and
efficient power source for smooth operation. With a capacity of
75mAh, this compact battery ensures that the pen can be used for
extended periods without frequent recharging.
Its small size and lightweight design make it easy to integrate
into the sleek form factor of electronic pens, enhancing
portability and user comfort. The rechargeable feature supports
multiple charge cycles, promoting sustainability and reducing
waste.
Utilizing advanced lithium ion polymer technology, the 321223
battery delivers stable voltage output, which is crucial for
consistent performance. Additionally, built-in safety features help
prevent overheating and leakage, ensuring safe operation. Overall,
this battery is an excellent choice for powering electronic pens
effectively and reliably.
Lithium Ion Polymer Battery 321223 Parameters
| Description: 321223 3.8V 75mAh Lithium Ion Polymer Battery |
| Battery Type | High Voltage Li-Polymer Battery | Material | LiCoO2/NCM |
| Model | 321223 | Nominal Voltage/Capacity | 3.8V/75mAh |
| Cell Weight | Approx 1.5g | Color&Shape | Silver, Prismatic |
| Battrey Cell Dimension | MAX 3.2(T)x12.0(W)x23.5(L)mm | Battery Pack Dimension | MAX 3.2(T)x12.0(W)x25.5(L)mm |
| Cycle Life | ≥ 500 times | Warranty | 1 Year |
| Charge Info | Charge Voltage : 4.35V |
| Standard Charge Current : 15mA/0.2C |
| Max Charge Current: 75mA/1.0C(Customized) |
| Discharge Info | Discharge Cut-off Voltage : 3.0V |
| Standard Discharge Current : 15mA/0.2C |
| Max Discharge Current : 75mA/1.0C(Customized) |
| Operating Temperature | Charge: 0℃~+45℃ |
| Discharge: -20℃~+60℃ |
Lithium Ion Polymer Battery 321223 Features
• Rechargeable: Supports multiple charge cycles, promoting
sustainability.
• Compact Design: Easy to integrate into various LED light
fixtures.
• Lightweight: Enhances portability, making it suitable for mobile
lighting solutions.
• Stable Power Output: Delivers consistent voltage for uniform
brightness.
• Fast Charging: Reduces downtime, allowing quicker readiness for
use.

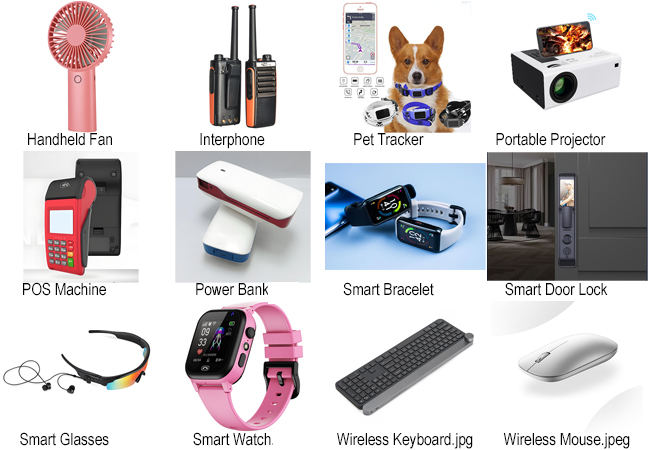

Lithium Ion Polymer Battery 321223 Applications
Toys, Power Tools, Wireless Home Appliances, Camera, Consumer
Electronics, GPS Tracker, Electronic Pen, Drone, Beauty
Instruments, Bluetooth Headset, Solar Energy Storage Systems.
Precautions for Use
1. Charging: Use a charger designed for polymer lithium batteries.
Avoid overcharging.
2. Discharging: Prevent deep discharge by avoiding extremely low
voltage levels. Most polymer lithium batteries have built-in
protection circuits.
3. Temperature: Operate within the recommended temperature range
provided by the manufacturer. Avoid exposing to extreme
temperatures.
4. Physical Handling: Handle with care to avoid damage or leakage.
Avoid impacts, punctures, or bending.
5. Compatibility: Ensure compatibility with your device in terms of
voltage, capacity, and size.
6. Storage: Store in a cool, dry place away from direct sunlight.
Avoid storing at full charge or completely discharged.
7. Transportation: Comply with transportation regulations and
guidelines.
8. Disposal: Dispose of properly. Recycle at designated facilities
or follow local regulations.
After-sales Service:
1. After-sales warranty:
- According to the contract, we provide a certain warranty period
for the exported lithium polymer batteries.
- During the warranty period, if the product has quality problems
under normal use conditions, we will provide replacement or return
service according to the after-sales policy.
2. Product quality assurance:
- We guarantee that the exported lithium polymer batteries comply
with international quality standards and regulations, and undergo
strict quality control and testing to ensure their performance and
reliability.
- If you find product quality problems under normal use conditions,
please contact us within the contractual warranty period, we will
actively deal with it and provide solutions.
3. Problem solving:
- If you encounter any problems or have any complaints during the
after-sales service, please contact our customer service team in
time.
- We will be happy to provide you with support and actively seek
solutions to your problems to ensure your satisfaction and good
cooperative relationship.
Our Advantages
◆ Over 10 years of li-polymer battery manufacture & export
experience
◆ Professional R&D team supporting
◆ Excellent quality, advanced equipment and competitive prices
◆ Good package, cheap freight cost, faster delivery, best
after-sales service
◆ OEM / ODM are welcome, we can customize different size to meet
customer's requirements
◆ Long life cycle of charging & discharging
***Please contact us to get more detailed information and free
samples***
