3.7V Rechargeable Li Polymer Battery 103040 1200 mAh for Medical
Device and LED Lamp
Lithium Polymer Battery 103040 Description
The 3.7V rechargeable Li-Polymer battery (103040) with a capacity
of 1200mAh is designed for use in medical devices and LED lamps.
This battery provides reliable, long-lasting power, ensuring that
essential equipment operates efficiently. Its compact size makes it
easy to integrate into various devices, while the rechargeable
feature promotes eco-friendliness and cost-effectiveness. With a
stable voltage output, this battery is ideal for applications
requiring consistent performance, making it an excellent choice for
both medical and lighting solutions.
Features Overview of Rechargeable Li Polymer Battery
1. Thin, light weight, customizable shape, suitable for some
special design needs, such as curved surface equipment and
ultra-thin equipment.
2. It has a high energy density and can provide longer battery
life.
3. Relatively high safety performance and low self-discharge rate.

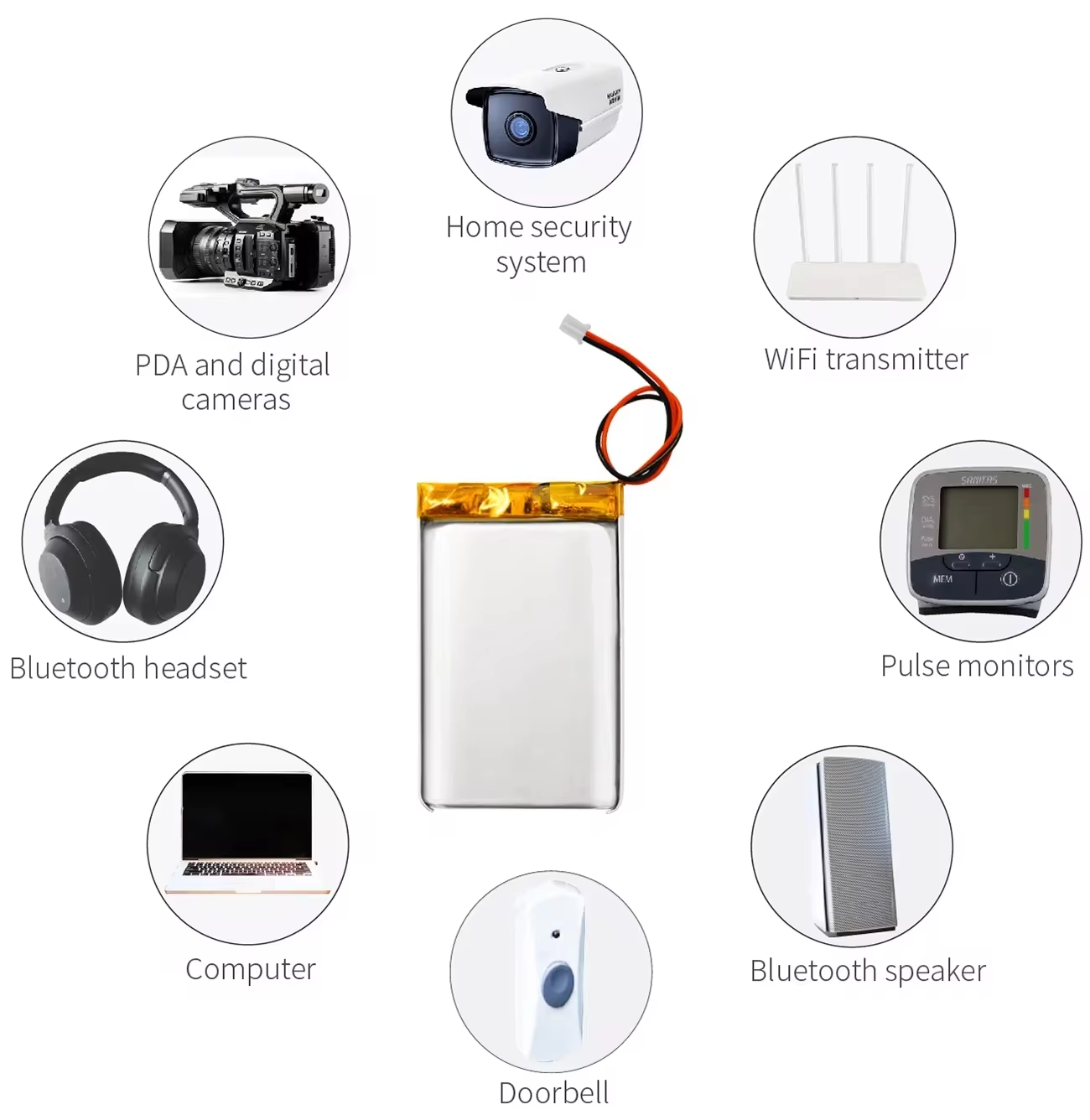

Applications of Rechargeable Li Polymer Battery
Polymer lithium battery with its high energy density, good safety,
long life, flexible design, fast charge and discharge and
environmental characteristics, etc. , has become an important part
of today's battery technology. With the development of science and
Technology, polymer lithium battery will be more widely used in
various fields.
Technical Parameters of Rechargeable Li Polymer Battery
| Description:103040-3.7V-1200mAh |
| Battery Type | Li-Polymer Battery | Material | LiCoO2 |
| Model | 103040 | Nominal Voltage/Capacity | 3.7V/1200mAh |
| Weight | Approx 22g | Color&Shape | Silver, Prismatic |
| Battrey Cell Dimension | MAX 10.0(T)x30.5(W)x40.0(L)mm | Battery Pack Dimension | MAX 10.0(T)x30.5(W)x42.0(L)mm |
| Cycle Life | ≥ 500 times | Warranty | 1 Year |
| Charge Info | Charge Voltage : 4.2V |
| Standard Charge Current : 240mA/0.2C |
| Max Charge Current: 1200mA/1.0C |
| Discharge Info | Discharge Cut-off Voltage : 3.0V |
| Standard Discharge Current : 240mA/0.2C |
| Max Discharge Current : 1200mA/1.0C |
| Operating Temperature | Charge: 0℃~+45℃ |
| Discharge: -20℃~+60℃ |
|
Polymer Battery Packing and Shiping
Shrink Package / Blister Trays / Pallet / PE bag / Customized Package
- All shipping goods are 100% inspected and packed very well.
- The images shown are for your reference Only.
- Any means of transportation is available.
- For samples : Support free samples, delivery within 13 days
Precautions for Use
1. Charging: Use a charger designed for polymer lithium batteries.
Avoid overcharging.
2. Discharging: Prevent deep discharge by avoiding extremely low
voltage levels. Most polymer lithium batteries have built-in
protection circuits.
3. Temperature: Operate within the recommended temperature range
provided by the manufacturer. Avoid exposing to extreme
temperatures.
4. Physical Handling: Handle with care to avoid damage or leakage.
Avoid impacts, punctures, or bending.
5. Compatibility: Ensure compatibility with your device in terms of
voltage, capacity, and size.
6. Storage: Store in a cool, dry place away from direct sunlight.
Avoid storing at full charge or completely discharged.
7. Transportation: Comply with transportation regulations and
guidelines.
8. Disposal: Dispose of properly. Recycle at designated facilities
or follow local regulations.
